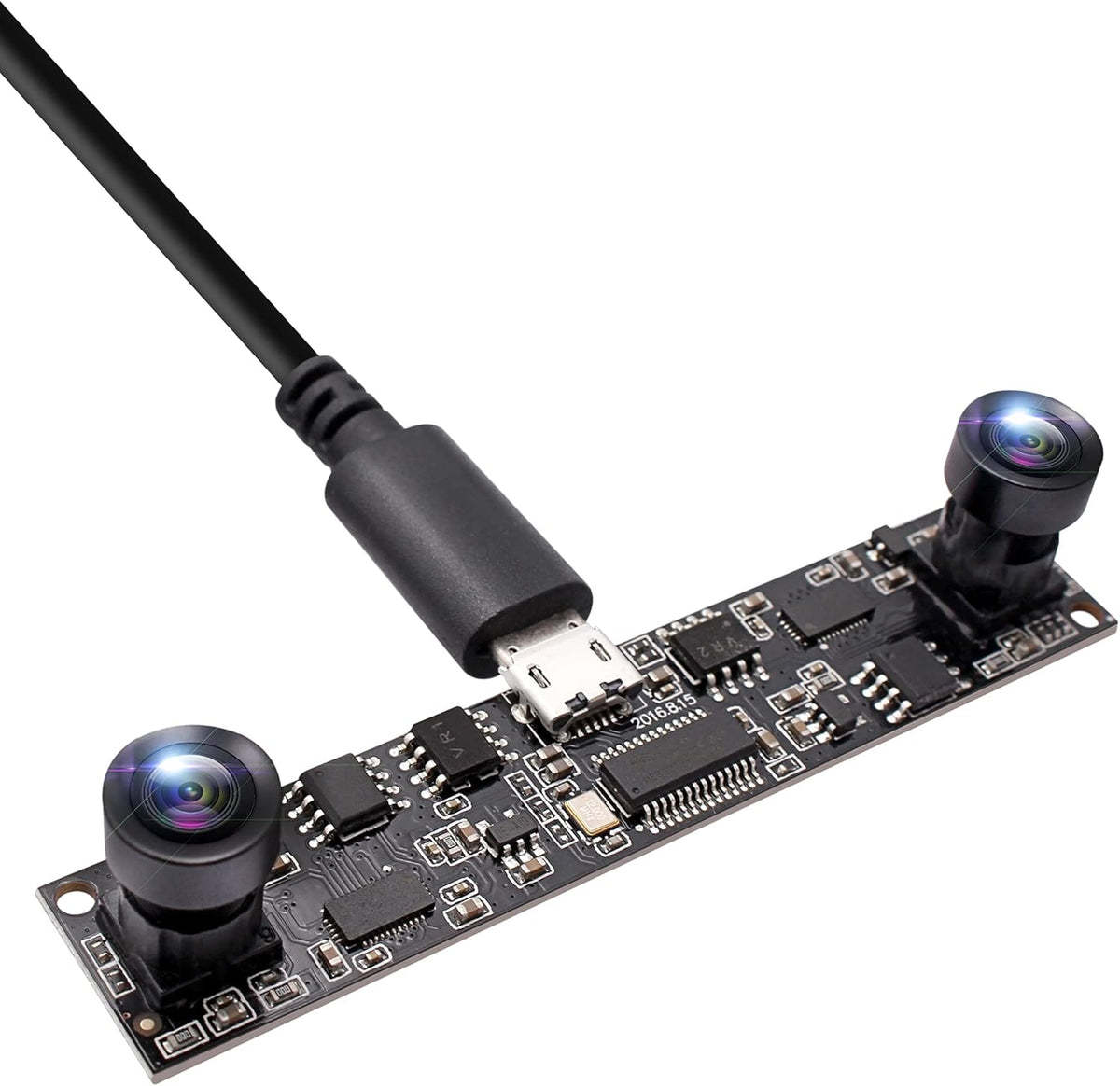

HD USB Dual Lens Synchronized Stereo Camera Board 960P USB 2.0 J491671
HD USB Dual Lens Synchronized Stereo Camera Board 960P USB 2.0 J491671
【Synchronized Stereo Camera】:Stereo camera with synchronized dual lens usb provide accuracy at less than one millisecond. Face recognition, object identification, motion tracking, mapping, and AR & VR applications can integrate seamlessly,suitable for stereo 3D,VR application like people counting system,stereoscopic computer vision ect. all kind of industrial areas.
【HD USB Camera with High Frame Rate】1.3MP HD USB camera 1/3' CMOS OV9750 image sensor, high speed 60 frames per second, 2560x960 at 60fps, 2560x720 at 60fps, 1280X480 at 60fps, 640x240 at 60fps. Perfectly synchronized stereo images and high pixel technology for sharp image and accurate color reproduction.
【Synchronized Dual Lens USB Camera Module with HOV 90 degree】:1.3MP usb camera dual lens utilizing the disparity between the two lenses through algorithms,allow machine to see the world as we do. USB camera module with passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.Small outline 80*16.5mm for embedded application
【Plug & Play Driverless】960P driverless stereo camera with 1 meters high speed 2.0USB cable, occupy less bandwidth , great improved the working efficiency. Easy to use just play and plug, no driver needed
【Highly Compatiable】Dual Lens USB camera Moduleis work with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC. Also for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming etc.
SECIFICATIONS:
1.3MegaPixels,Max. Resolution 2560(H)X960(V)
Sensor 1/3 inch OV9750
Pixel Size 4860µm x 3660 µm
Resolution & frame MJPEG：2560X960@ 60fps/2560X720@60fps /1280X480@60fps /640X240@60fps
Sensitivity 3.7V/lux-sec@550nm
Mini illumination 0. 1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class（UVC）
Support OTG Protocol USB2.0 OTG
AEC Support, AEB Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter: M9 Lens HOV 90 degree,optional M12 no ditortion lens, wide angle 180degree lens
USB Interface Micro USB
Operating Voltage DC5V/Operating Cuttent 160mA~220mA
Working temperature -10～70℃/ Storage temperature -20～85℃
Board size /Weight 80X16.5mm, about 30g
Cable Standard 1M
Operating system request Win XP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
PACKAGE INCLUDED:

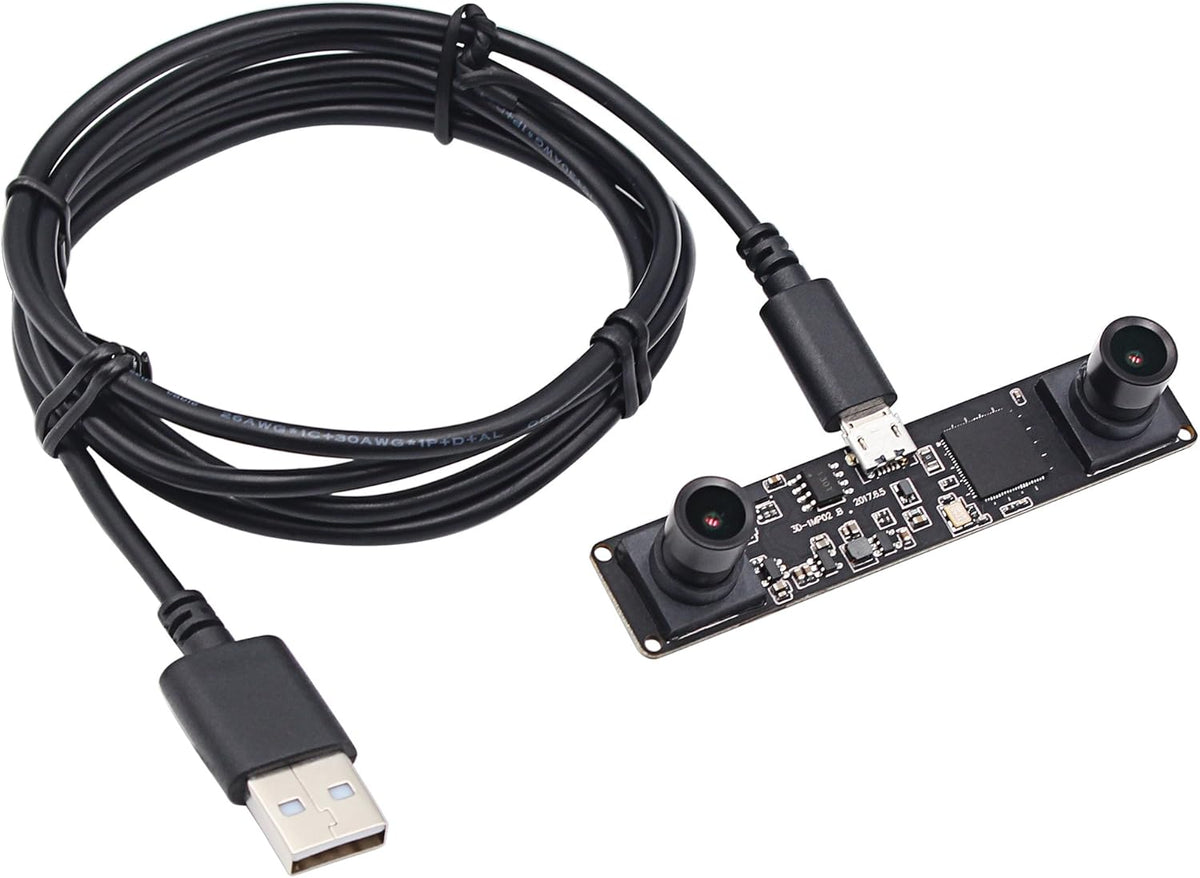

1) 1PC 1.3mp dual lens usb camera module with 90 degree M9 lens
2) 1PC 1m usb cable
If there is any problem, please feel free to contact us, we will solve it quickly and in the best way!
